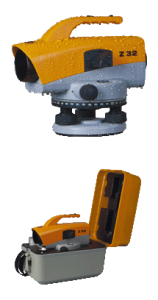

NEDO Engineers Z Series 28X Auto Level Z28

$463.00
Call for Price

  • Model: 460757-185
  • Manufactured by: NEDO
  • Ship Lead Days: 10

Availability - Process Time

Usually Ships

Special Order Not Avail in Store UPS Only
Allow Up to 7 Days



Engineers’ Levels Z-Series Premium Class Levels

Nedo Z-Series levels are premium engineers’ levels that meet the most exacting demands. The levels in this series have an especially large aperture to provide plenty of light-gathering power, a rugged, air-damped compensator and  a jet-water proof metal housing conforming to protection class IP X6. Perfect for extreme conditions like dust and rain.

Features:

  • Automatic engineers' level with
  • 28x magnification
  • Bright optics with large objective aperture: 36 mm
  • Jet water protected; IP X6
  • Sturdy, reliable air-damped compensator
  • Sturdy metal housing
  • High-contrast image
  • Inspection record
  • Comes with plumb bob, adjusting pin and robust case
  • Available as a set with rod and tripod upon request

Model                                                                   Z28                                         Z32

Image                                                                   upright                                 upright

Magnification                                                    28x                                         32x

Clear objective aperture                               1.4'' / 36 mm                     1.4'' 36 mm

Shortest focusing distance                           25.6'' / 0.65 m                   25.6'' / 0.65 m

Multiplication factor                                       100                                         100

Compensator operating range                    +/-15'                                    +/-15'

Setting accuracy                                                +/-0.4"                                  +/-0.3"

Horizontal circle                                                360 degrees                       360 degrees

Sensitivity of circular bubble                       8'/0.08'' / 8'/2 mm          8'/0.08'' / 8'/2 mm

Accuracy 1 km Double run

leveling standard Deviation                         +/-0.06'' / 1.5 mm            +/-0.04'' / 1.0 mm

Protection class                                                 IP X6                                      IP X6

Weight                                                                 3.8 lbs. / 1.75 kg               3.8 lbs. / 1.75 kg

Connecting thread                                           5/8"x11                                 5/8"x11

Ref.-No.                                                               460 757-185                        460 758-185
