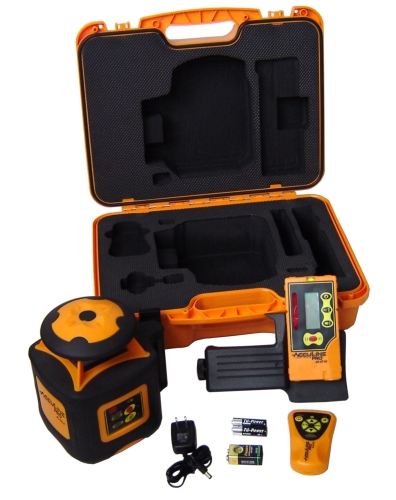

40-6535 Kit Includes > Laser, NiMH rechargeable battery pack, 6V battery adapter, remote control with 9V battery, detector with 9V battery and clamp, instruction manual with warranty card, hard-shell carrying case
-
Designed for outdoor use and simple set up
-
Electronically-controlled dual slope feature
-
Electronic self-leveling in the horizontal plane
-
Visual and audible alarms when beyond leveling range
-
Single speed rotation 700 RPM
-
Slope operation function allows user to perform slope 8 degrees in both x and y axis
-
Remote control and detector for one person operation
-
Height of Instrument/Tilt alarm function ensures product accuracy
| Accuracy |
+/-1/16"/100ft. (+/-1.5mm/30m) |
| Auto-Leveling Range |
+/-5 degrees |
| Battery Life |
Approximately 28 hours with rechargeable battery pack; 33 hours with alkaline batteries |
| Center Screw Thread |
5/8"-11 |
| Dimensions |
7.4" x 5.9" x 8.15" (188 x 150 x 207mm) |
| Exterior Range |
Up to 2000' diameter (600m) with detector |
| Interior Range |
Up to 100' diameter (30m) depending upon light conditions |
| IP Protection Class |
66 |
| Laser Classification |
Class IIIa |
| Maximum Power Output |
+/-5mW |
| Power Supply |
Rechargeable NiMH battery pack, or 6V adapter (included), 4 "C" alkaline batteries (not included) |
| Remote Range |
Up to 200' diameter (60m) with remote |
| Rotation Speeds |
700 rpm |
| Slope |
+/-8 degrees |
| Warranty |
3 Years |
| Weight |
5.51lbs. (2.1kg) |
| Working Temperature |
14F to 113F (-10C to +45C) |
| Laser Wavelength |
635nm +/-10nm |
| Leveling Method |
Automatic (Electronic) |
