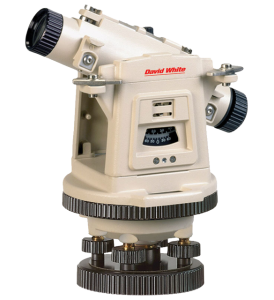

Dave White LT8-300P Universal Level-Transit 46-D8871

$1,430.00  $1,061.75
Save: 26% off

Add to Cart:

  • Model: 46-D8871
  • Manufactured by: Site-Pro
  • Ship Lead Days: 10

Availability - Process Time

Usually Ships

UPS Only



Ruggedness and dependability make these five-minute instruments the first choice for almost every horizontal and vertical sighting application in construction. The sleek, compact, 26x telescope is engineered to protect against dirt, damage and costly repairs. The horizontal axis features a trunnion design for maximum rigidity. Within the protection of the rugged base, the wide-stance ball bearing center guarantees you smooth movement and superior alignment control. The level transit is lined up over a reference point by using a laser plumb, assuring you of precise positioning every time.

Product Information and Details

  • 26X Level-Transit
  • Objective 32mm
  • +/-3/16-in.(4.75mm) at 150-ft.(45m) leveling accuracy
  • Up to 400-ft.(120m) range, minimum focus 6 feet
  • Field of View - 1'9" @ 100 ft (0.5 m @ 100 m)
  • Horizontal circle, lock and tangent
  • Vertical arc, lock and tangent
  • 1:100 stadia with glass reticle
  • Optical Plummet
  • 5/8 x 11 Thread Size
  • This unit does have Stadia lines



46-D8871 includes: Rain hood, objective lens cap and carrying case.
