40-6547 Self-Leveling Horiztl & Vertical Rotary Laser GreenBrite

$2,650.08

 Sold Out
  • Model: 40-6547
  • Manufactured by: Johnson Level

Availability - Process Time

Usually Ships

Special Order Not Avail in Store UPS Only
Allow Up to 7 Days

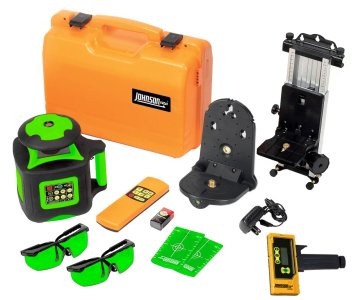

40-6547 Includes > Laser, NiMH rechargeable battery pack, 6V battery adapter, remote control with 9V battery adapter, remote control with 9V battery, detector with 3 "AAA" alkaline batteries and clamp, vertical mounting adapter, wall/ceiling mount, 2 magnetic targets, 2 tinted glasses, instruction manual with warranty card and a hard-shell carrying case

Green beam is 400% more visible than red beam



  • Electronically-controlled dual slope feature

  • Laser beam modes include dot, two adjustable line lengths and two rotational speeds

  • Two rotational speeds: 200 and 600 RPM

  • Visual and audible alarms when beyond leveling range

  • Electronically-controlled dual slope feature

  • Height of Instrument/Tilt alarm function ensures product accuracy

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

532nm+/-10nm (Green)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/16"/100ft. (+/-1.5mm/30m)

Interior Range:

Up to 400ft. (120m) diameter depending upon light conditions

Exterior Range:

Up to 1,400ft. (427m) diameter with dector (included in 40-6547)

Remote Range:

Up to 200ft. (60m) diameter

Slope:

+/- 8 degrees

Auto-Leveling Range:

+/- 5 degrees

Power Supply:

NiMH rechargable battery pack and 6V adapter (included), 4"C" alkaline batteries (not included)

Battery Life:

Approximately 10 hours with rechargeable battery pack; 15 hrs with alkaline batteries

Dimensions:

7" x 5" x 6.62" (177X127x159mm)

Weight:

9.61Ibs. (4.35kg)

Working Temperature:

32 degrees to 104 degrees (0degrees celsius to +40degrees celsius)

Center Screw Thread:

5/8"-11

Scanning Modes:

0, 30, ,60 degrees

Rotation Speeds:

200 and 600 RPM

IP Protection Class:

66

Warranty:

3 Year Warranty
