The MPC-Rex Combo Kit both pipe & cable and magnetic loctor

$4,357.00

Add to Cart:

  • Model: MPC-REX
  • Manufactured by: Schonstedt
  • Ship Lead Days: 10

Availability - Process Time

Usually Ships

UPS Only
Special Order Not Avail in Store UPS Only
Allow 1-2 Weeks



Schonstedt combination Kit - REX System with GA-92XTd Magnetic Locator

Model Number: MPC-REX

Features:

  • The MPC-Rex Combo Kit is truly the one kit that finds it all, designed for utility locating professionals in Water, Sewer, Gas, Electric, Telecomm industries.
  • The entire system fits easily into a custom shoulder bag.
  • Ultralight Design
  • Compact & Portable
  • Pinpoint Accuracy

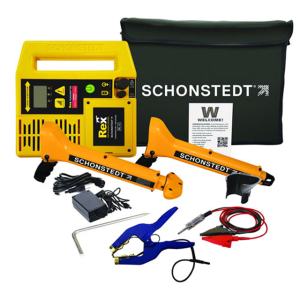

Package Includes:

  • GA-92XTd Magnetic Locator
  • Rex Multi-Frequency Pipe & Cable Locator
  • Holster (Model Number: PC10012)
  • Conductive Clip Assembly (Model Number: TM70000) which includes Standard Conductive Clips — C91010 (Red) and C91011 (Black)
  • Soft Shoulder Bag (holds receiver, transmitter, accessories)
  • Ground Stake (Model Number: 208263)
  • Power Supply & Cord for Transmitter charging
  • 7 Year Manufacturer's Warranty on GA-92XTd
  • 3 Year Manufacturer's Warranty on REX

GA-92XTD Features:

  • Digital readout and expanding bar graph displays signal strength and polarity
  • Continuous Gain control, with range indicated by a 4-segment LCD at each quarter turn
  • Piezoelectric speaker
  • 24-Hours operational life (intermittent usage)
  • Lithium batteries provide twice the life of alkaline, and have a 10-year shelf life.
  • 4-Segment BATT LCD monitors battery charge
  • Lightweight, easy-to-use-design reduces search time
  • One hand operation
  • Fingertip control of volume and sensitivity
  • Modular construction; high performance components
  • Patented HeliFlux sensors
  • No response to aluminum, brass, or copper

GA-92XTD Specifications:

  • Battery Indicator: 4-segment LCD
  • Gain: 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
  • Volume: 3 Levels: Muted, Medium and Maximum
  • Input Power: One 9V Battery
  • Battery Life: 24 Hours (intermittent use)
  • Operating Temp: -13 F to 140 F (-25 C to 60 C)
  • Overall Length: Open – 26” (66 cm); Closed – 15.5” (39 cm)
  • Nominal Sensor Spacing: 9.5” (24 cm)
  • Weight: Approximately 2.4 lb (1.1 kg)
  • Water and Dust Resistance: Rated IP54

REX Features:

  • Ultralight Design: Receiver + Transmitter = Under 7lbs
  • Compact & Portable: Receiver retracts for easy carrying
  • Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz, plus 50/60 Hz passive and 512 Hz sonde detection
  • Transmitter comes equipped with rechargeable batteries

REX Specifications:

  • Operating Frequency: Active: 512 Hz, 33 kHz and 82 kHz; ; Passive: 50 or 60 Hz; Sonde: 512 Hz
  • Battery: One 9V battery
  • Battery Life:12 hours (intermittent use)
  • Weight (incl. batteries): 2.8 lbs (1.25 kg)
  • Operating Temp: -4 F to 140 F (-20 C to 70 C)
  • Water and Dust Resistance: Rated IP54
  • Dimensions: Closed: 17.5" (~44 cm); Extended: 27.7" (~70 cm)
  • Max. Depth Capability:: Approximately 19' (5.8 m)
  • Sonde mode - approximately 5’ - 15’ (1.5 m to 4.2 m)

REX Transmitter Specifications:

  • Operating Frequency: 82kHz, 33kHz & 512 Hz
  • Operating Modes: Conductive, Inductive, and Inductive Clamp
  • Max. Output Power (Conductive mode @ 1000 Ω load): 512 Hz - 1/2, 1, 2 or 5 W, 33 kHz - 1/2, 1, 2 or 5 W, 82 kHz - 1/2 or 1
  • Battery Type: Rechargeable NiMH pack (12V)
  • Battery Life: 8 Hours (intermittent use)
  • Charging: Internal Smart Charger powered by AC/DC power adapter
  • Dimensions 10” x 10.25” x 1.75” (25.4 cm x 26 cm x 4.5 cm)
  • Weight (incl. batteries): 3.5 lbs (1.6 kg)
  • Operating Temp: -4 F to 140 F (-20 C to 70 C)
  • Backlighting: White LED array
  • Water and Dust Resistance: Rated IP54
