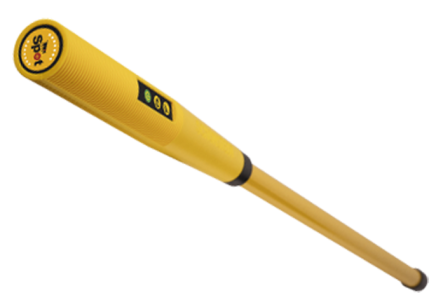

Schonstedt Spot Magnetic Locator

$889.00  $639.00
Save: 28% off

Add to Cart:
Max: 5
  • Model: SPOT
  • Manufactured by: Schonstedt

Availability - Process Time

Usually Ships

Allow Up to 7 Days
UPS



Now comes Spot, with engineering and accuracy equal to the GA-52Cx, in a sleek, ultralight-weight package with improved ergonomics. And with an IP54 rating and a 7-year warranty, Spot is built for rough terrain, severe weather, and rugged daily use.

If you’re looking for Higher Accuracy at a Lower Cost, put Spot on the trail of your next locate!

Optimized for Finding

  • Survey Pins, Markers and Nails

  • Water & Gas Valves

  • Manhole Covers

  • Other deep iron/steel objects

  • Single 9 Volt battery operation

AUDIO OUTPUT Frequency increases or decreases with signal strength (gradient field intensity).
Range: 30 to 4000 Hz.
DEPTH DETECTION Up to 18’ deep (5.48 m) (object dependent)
LOW BATTERY INDICATOR 1/2 second audio beep, every 13 seconds
GAIN 5 levels: Extra Low (1), Low (2), Medium (3), High (4), Extra High (5) Audio: Progression of audio beeps to correlate with gain setting (one beep for #1, two beeps for # 2, and so on)
VOLUME 2 Levels: Medium & Maximum
INPUT POWER One 9V Battery
BATTERY LIFE 24 Hours (intermittent usage)
OPERATING TEMPERATURE -13 F to 140 F (-25 C to 60 C)
OVERALL LENGTH 42.3” (107.4 cm)
NOMINAL SENSOR SPACING 20” (50 cm)
WEIGHT 2.0 lbs (0.9 Kg)
WATER AND DUST PROTECTION Rated IP54 overall, waterproof up to 27” (58 cm) from bottom tip
