SitePro Technician ST101 Locator Field Kit WITH Bonus Safety Vest and Roll Wheel
Model Number: 59-ST101FLDKIT
The Technician ST101 locator field kit is great for professionals or if you are starting out in the field.The Smart-TRAK is the smart choice for locating manholes, steel covers, septic systems, corner survey markers, cast iron pipes, iron valves, and re-bar. The ST100 series feature one-handed operation with pinpoint accuracy and large visual display.
The SitePro 31-PS301 distance measuring wheel features all-steel construction with an 11-1/2” (3-ft circumference) steel-spoke wheel. Provides the best performance on rough terrain for heavy construction, large commercial operations, utilities, land surveying and other measuring applications.

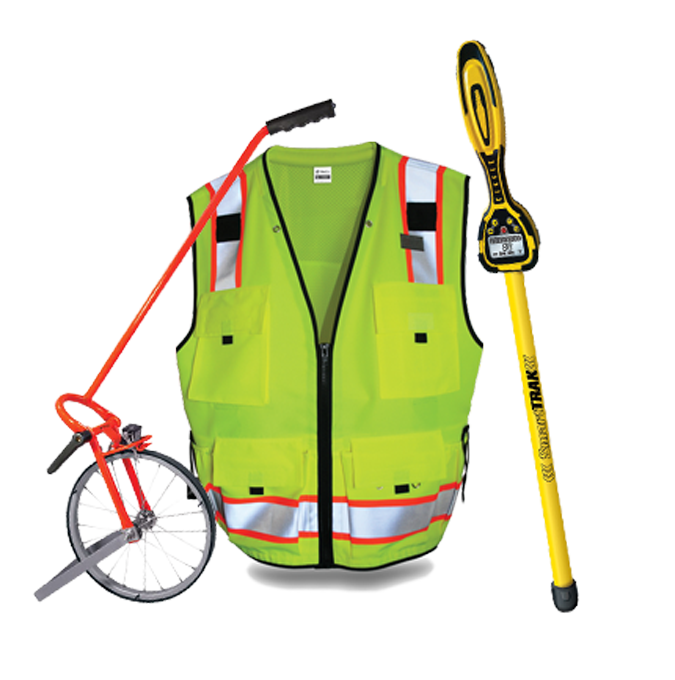

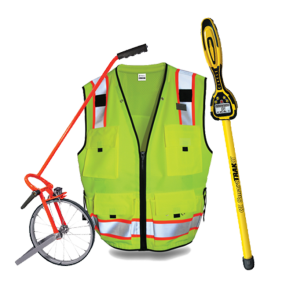

Kit Includes:
- 59-ST101 Smart-Track Magnetic Locator
- 31-PS301 3' Measuring Wheel
- 23-550 Surveyors Class 2 Safety Vest in Lime Green
Smart-Track Locator Features and Specifications:
- Precision-crafted superior ergonomics and balanced design for one-handed operation
- Large LCD screen for visual search results 0-99 numeric indicator with signal strength bar graph, North/South polarity indicator, and battery level indicator
- High-grade waterproof speaker is water resistant and dust proof to ensure years of dependable operation
- Robust co-molded housing is water resistant and dust proof to ensure years of dependable operation
- Waterproof tube (IP67) and tip for locating even in the toughest environments and weather conditions
- Audio Output: 10Hz frequency tone, increases with magnetic field strength
- Visual Output: LCD – Numeric 0 – 99, signal strength bar graph
- Gain (Sensitivity): 6 settings
- Smart-Search Technology: No
- Modes: Standard
- Power: Six “AA” alkaline batteries provides 50 hours (intermittent operation)
- Operating Temp: ‐13 F to 140 F (‐25 C to 60 C)
- Power: Six “AA” alkaline batteries provides 50 hours (intermittent operation)
- Weight: 2.5 lb (1.13kg) with batteries
- Environment: IP54 – plastic housing; IP67 – sensor tube to just below the plastic housing
- Assembled in the USA
Measuring Wheel Features and Specifications:
- 5-digit ratchet-style mechanical counter records up to 99,999 feet with convenient rest knob
- 3-ft circumference spoke wheel and wide rubber tire makes it easier to measure accurately on rough terrain and uneven ground
- Wheel brake prevents wheel from slipping and allows for easy transport without losing existing measurement
- Built-in wheel stand keeps wheel upright
- Easy-grip handle quickly collapses for compact storage when not in use
- Diameter: 11-1/2 in
- Circumference: 3 ft.
- Wheel Type: Steel Spoked
- Units: Feet
- Counter Type: 5-digit ratchet style
- Weight: 5.3 lb (2.4 kg)
- Extended Height: 45.5” (116 cm)
- Collapsed Height: 26.5″ (67 cm)
SitePro Surveyors Class 2 Safety Vest Features and Specifications:
- Color: Lime Green
- Solid Polyester Front with Mesh back
- Zipper Front Closure reinforced with durable webbing
- Meets ANSI/ISEA Class 2 requirements
- Silver reflective material laminated to Contrasting Orange
- Left and Right Mic Tabs
- Back pouch for additional storage
- Left chest 2-tier pocket with dual function flap that can be held open by hook & loop
- Large right gusseted pocket with flap
- Outside lower front pockets with flaps, left and right stake pockets, left and right elastic pockets
- Lower inside left and right full length zipper pockets with load bearing straps
- Left and Right spray can holders
- Hidden back pouch with left and right zipper access
