40-6522 Electronic Self-leveling Rotary Laser Level


 Sold Out
  • Model: 40-6522
  • Manufactured by: Johnson Level

Availability - Process Time

Usually Ships

Special Order Not Avail in Store UPS Only
Allow Up to 7 Days

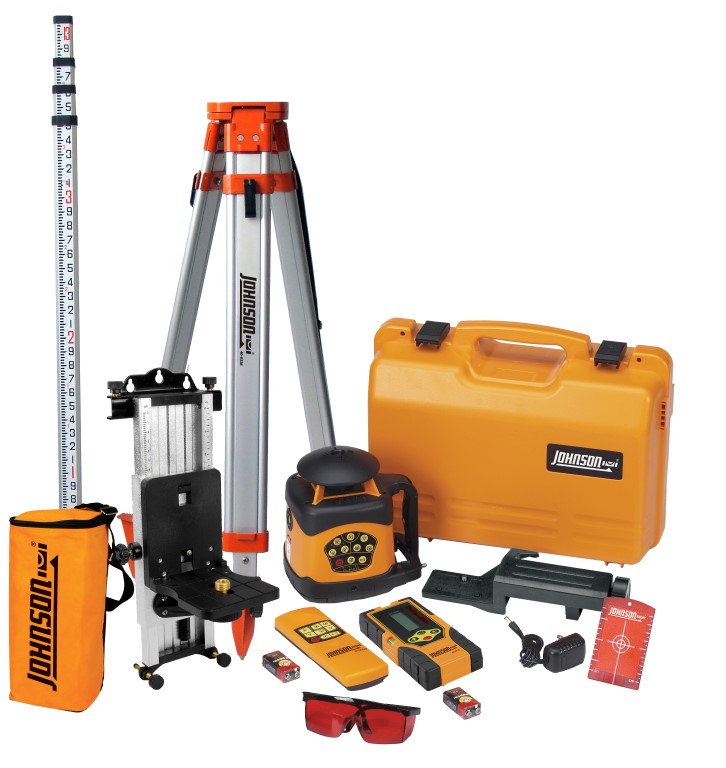

40-6522 Kit Includes > Laser, NiMH rechargeable battery pack, 6V battery adapter, remote control with 9V battery, detector with 9V battery and clamp, magnetic target, tinted glasses, instruction manual with warranty card, hard-shell carrying case


  • Designed for indoor and outdoor applications

  • Electronically-controlled dual slope feature

  • Electronic self-leveling horizontally and vertically

  • Laser beam modes include dot, two adjustable line lengths and two rotational speeds

  • Two rotational speeds: 120 and 500 RPM

  • Visual and audible alarms when beyond leveling range

  • Height of Instrument/Tilt alarm function ensures product accuracy

Accuracy +/-1/16"/100ft. (+/-1.5mm/30m)
Battery Life Approximately 15 hours with rechargeable battery pack; 20 hours with alkaline batteries
Center Screw Thread 5/8"-11
Dimensions 5.75" x 7.75" x 7.625" (146 x 197 x 194mm)
Exterior Range Up to 2000` diameter (600m) with detector
Interior Range Up to 200` diameter (60m) depending on light conditions
IP Protection Class 66
Laser Classification Class IIIa
Laser Wavelength 635nm +/-10nm (Red)
Leveling Method Automatic (Electronic)
Maximum Power Output <=5mW
Power Supply Rechargeable NiMH battery pack, or 6V adapter (included), 4 "C" alkaline batteries (not included)
Remote Range Up to 200` diameter (60m)
Rotation Speeds 120, 500 rpm
Scanning Modes 0, 30, 60 degrees
Slope +/-8 degrees
Warranty 3 Years
Weight 4.4 lbs. (2kg)
Working Temperature 14F to 113F (-10C to +45C)
Auto-Leveling Range +/-5 degrees
