40-6523 Electronic Self-Leveling Horizontal & Vertical Rotary

$1,689.04

 Sold Out
  • Model: 40-6523
  • Manufactured by: Johnson Level

Availability - Process Time

Usually Ships

Special Order Not Avail in Store UPS Only
Allow Up to 7 Days

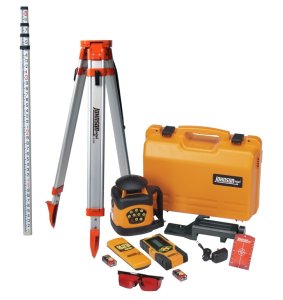

40-6523 Includes > Laser, NiMH rechargeable battery pack, 6V battery adapter, remote control with 9V battery, detector with 9V battery and clamp, magnetic target, tinted glasses, aluminum tripod, 13ft. grade rod, instruction manual with warranty card and a hard-shell carrying case

Designed for indoor and outdoor applications

  • Electronically-controlled dual slope feature

  • Electronic self-leveling horizontally and vertically

  • Laser beam modes include dot, two adjustable line lengths and two rotational speeds

  • Two rotational speeds: 120 and 500 RPM

  • Visual and audible alarms when beyond leveling range

  • Height of Instrument/Tilt alarm function ensures product accuracy

Leveling Method:

Automatic (Electronic)

Laser Wavelength:

635nm+/-10nm (Red)

Laser Classification:

Class Illa

Maximum Power Output:

Less than/Equal to 5mW

Accuracy:

+/-1/16"/100ft. (+/-1.5mm/30m)

Interior Range:

Up to 200ft. (60m) diameter depending upon light conditions

Exterior Range:

Up to 2,000ft. (610m) diameter depeding upn light conditions

Remote Range:

Up to 200ft. (60m) diameter

Slope:

+/- 8 degrees

Auto-Leveling Range:

+/- 5 degrees

Power Supply:

NiMH rechargeable battery pack and 6V adapter (included), 4 "C" alkaline batteries (not included)

Battery Life:

Approximately 15 hours with rachargeable battery pack; 20 hours with alkaline batteries

Dimensions:

5.75" x 7.75" x 7.625" (146x197x194mm)

Weight:

4.4Ibs. (2kg)

Working Temperature:

14 degrees to 113 degrees (-10 degrees celsius to +45 degrees celsius)

Center Screw Thread:

5/8"-11

Scanning Modes:

0, 30, 60 degrees

Rotation Speeds:

120, 500 RPM

IP Protection Class:

66

Warranty:

3 Year Warranty
